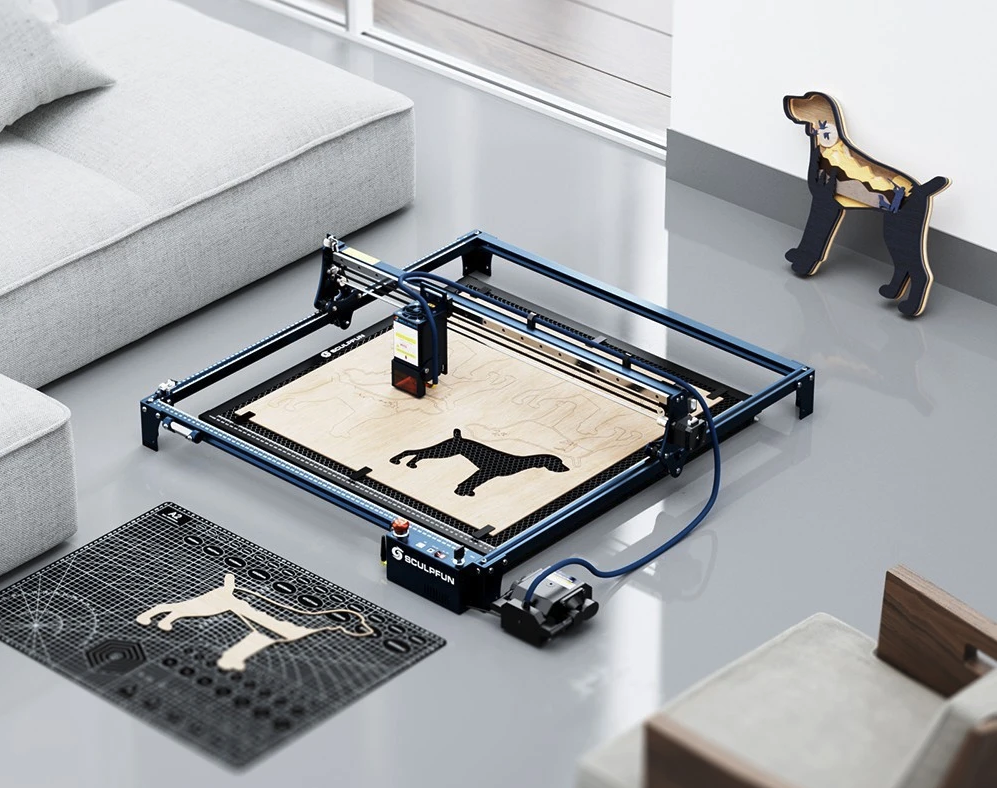

Sculpfun S30 Ultra – 33w

Auto air-assisted, the SCULPFUN S30 Ultra 33W laser engraver sports a giant engraving size of 600*600m. Coupling an upgraded linear guide rail with a 33W laser module, the S30 Ultra allows you to cut 20mm balsa wood and 15mm plywood separately in one pass.

600x600mm Large Engraving Area
Sporting a large engraving area of 600x600mm, SCULPFUN S30 Ultra allows you to create large-scale engraving or cutting works of your imagination. With an extremely long service life, it is unnecessary to upgrade the structure for future use.

Enhanced 33W Laser Power
S30 Ultra series laser applies 6pcs 6W diodes to deliver 33W laser power.  The cutting ability is thus enhanced to a great deal. It will cut 20mm balsa wood and 15mm plywood separately by one pass and is suitable for those pursuing the ultimate speed.

Enhanced 42-bit Stepping Motor
It adopts an enhanced 42-bit stepping motor that provides sufficient power to make the machine move at high speed. The torque reaches 4.2 Kg·cm (ordinary machines are 3.1 Kg·cm). In future upgrades, even if the laser or the load becomes heavier, there is no need to replace the motor.

Built-in High-pressure Air-assisted Nozzle
S30 Ultra series is equipped with an advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist. The powerful airflow blows away the residue, making the cutting surface very clean.

Replaceable Protective Lens
S30 Ultra series laser engraver uses an innovative replaceable lens, which greatly improves the service life of the laser, and is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore its cutting power.

Upgraded 32-bit Air-assisted Motherboard
The latest 32-bit motherboard supports an automatic air-assisted control function, supports wireless Bluetooth connection to control the machine, and is not limited by the distance of the USB cable.

Industrial-grade Cutting Precision
S30 Ultra adopts an extremely strong 0.005mm high-precision linear slide rail X-axis to achieve industrial-grade engraving precision. When comparing small engraving details, the S30 Ultra does not have the wavy patterns that appear on ordinary engraving machines.

Professional Safety Design
It is equipped with an emergency stop switch and a safety child lock. In an emergency, tapping the emergency stop switch can stop the machine; after pulling out the key, the machine cannot be turned on, which can prevent children from turning it on by mistake.

One Series One Structure
S30 Ultra series models keep high compatibility in design, S30 Ultra 11W/22W/33W power adapter, structure, and laser cable are all the same. In future upgrades, you only need to replace the laser head without any other changes.

Tool Box, Laser Repair Box, Fixed-focus Column Holder
S30 Ultra provides professional tool storage boxes and maintenance tool boxes, including mechanical wrenches, tweezers, nozzle cleaners, etc., all of which are conveniently stored in boxes. In addition, a professional fixed-focus column storage box is provided on the machine, which is convenient for storing the fixed-focus column.

Solid and Durable Frame
Made of high-strength aluminum alloy, its frame can withstand a weight of up to 50kg without damage, which is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.

Note

1. Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you’re not around.

2. For detailed machine instructions, please refer to the manual for parameter settings.

3. When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.

4. Do not touch the laser with your hands, otherwise, you may burn your hands.

5. Please avoid a strong impact on the machine.

6. It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.

7. Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Specification
